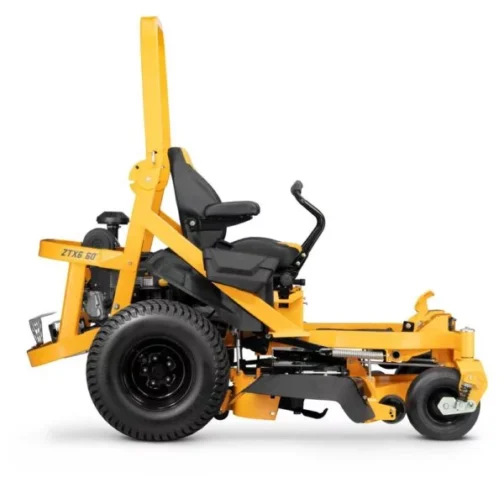

Cub Cadet Ultima Series ZTX6 60 60-in. 25.5 HP

Description

The Cub Cadet® Ultima Series ZTX6 60 60-in. 25.5 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.

• A high-strength 1.5 in. x 3 in. tubular steel frame is built to provide optimal strength and rigidity while allowing accessibility for easy routine maintenance
• Commercial grade 852cc/25.5HP* Kawasaki® FX801 V-Twin OHV engine designed for reliable starting and exceptionally smooth, quiet operation.
• Commercial grade dual hydrostatic rear-wheel transmissions for quick up to 9 MPH forward (3.5 MPH reverse) zero-turn controlled ground speeds.

• Limited 4-year/800 hour product warranty plus limited lifetime warranty on the frame and fabricated deck shell
• Zero-Turn Mower

ZTX6 60 Features:

• Front Suspension
• Rugged Frame
• Hydro_Gear™ ZT3400 Transmission
• Enhanced Traction
• Quick_Adjust Lap Bars
• High Back Seat
• Dual LED Headlights
• Reduced Vibration
• Easy Maintenance
• Adjustable Suspension Seat

Specs & Maintenance

Engine

• Engine Brand: Kawasaki
• Engine Model: FX Series
• Engine Model Number: 801V
• Engine Displacement: 852cc
• Engine Output: 25.5HP
• Starter Type: Electric
• Fuel Tank Capacity: 5.5 gal. US (20.82 L)
• Cylinders: Twin
• Engine Start: Ignition Key
• Engine Oil Capacity: 2.1 qt US ( 2 L)
• Lubrication: Fully pressurised
• Charging System: 12 amp regulated
• Fuel Gauge: Yes
• Governor: Mechanical
• Choke: Separate Choke
• Air Filter: Single element
• Oil Filter: Yes
• Fuel Delivery: Carburetor

Battery

• Battery: 230 CCA
• Battery Type: Standard Lead-Acid
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear ZT 3400 Charged
• Forward Speed: 9 MPH / 14.5 km/h
• Reverse Speed: 3.5 MPH / 5.6 km/h
• Drive System: Hydrostatic

Cutting Deck

• Deck Cutting Width: 54 in
• Deck Wash:No
• Deck Material: 10-gauge steel with 2-gauge reinforcement
• Deck Engagement (PTO): Electric
• Deck Construction: Fabricated
• Blade(s): Three
• Deck Lift: Foot pedal with Dial Adjust
• Cutting Height Range: 1″ – 4.75″
• Anti-Scalping: Three gauge wheels
• Deck Positions: 17

Chassis

• Frame: 1.5″ x 3″ tubular steel
• Turning Radius: 0°
• ROPS: Yes
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes

Controls

• Cruise Control: No
• Brakes: Disc
• Steering Control: Lap Bars

Comfort

• Seat Type: 24″ high back
• Armrests: Yes
• Seat Adjustment: Lever
• Front Caster Suspension: Yes

Wheels

• Rear Tires: 24″x 12″-12″
• Front Tires: 13″x 6.5″-6″
• Tire Tread: Turf Master / Multi Trac

Specifications

• Series: Ultima Series™ ZTX

Additional Specifications

• Hour Meter: Yes
• Mulch Kit: Available separately
• Headlight(s): Dual-LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Parking Brake: Lap Bar Integrated

Warranty

• Residential Warranty: 4-year 800 hours
• Frame Warranty: Lifetime Limited
• Deck Shell Warranty: Lifetime limited
• Commercial Warranty: 4-year 800 hours
