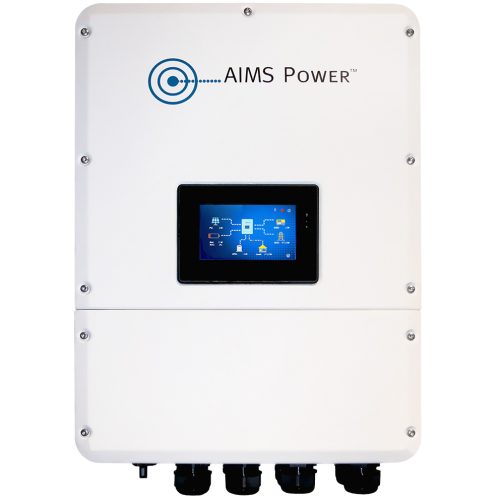

Name: AIMS Power Hybrid Inverter Charger 9.6 kW Inverter Output 15 kW Solar Input Grid Tie Battery Back Up Net Metering
SKU: INVERTER02
Availability: InStock

Sale!

AIMS Power Hybrid Inverter Charger 9.6 kW Inverter Output 15 kW Solar Input Grid Tie Battery Back Up Net Metering

Original price was: $2,250.00.Current price is: $1,399.00.

50 in stock

SKU: INVERTER02 Category: Inverter

Description
Reviews (0)

Description

The NEW REVOLUTIONARY AIMS Power Hybrid Inverter gives you total control of your power. It combines solar power and battery backup into one complete, easy to use solution, that provides FREE power and independence from the grid. In addition, the AIMS Power Hybrid Inverter can reduce or eliminate electric bills, provides power during outages, and allows customers to monitor their system from anywhere.

The truth is that when the power goes out in the neighborhood, millions of homeowners with solar panels quickly realize that they are not truly “independent” of the power company because they don’t have batteries in their home to store the power generated from their solar panels. The excess power they have generated goes back to the grid and doesn’t allow them to use the power generated when it really matters most.

Where the AIMS Power Hybrid Inverter makes an immediate impact is in its ability to be programmed to do exactly what you want it to do. Think of an orchestra without a conductor. It may have all the talent and potential in the world, but without a way to organize and direct it, you may as well listen to radio static. AIMS Power Hybrid Inverter is essentially the conductor for every source of power that you have in your house.

Features:

Listed to UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B
Stackable (Max 6)
Direct 3 string PV input
IP65 NEMA4X rated for outdoor installation
10 year warranty
Customizable DC input voltage for various battery types including lithium and lead
Free USA based tech support
Wide programmable voltage input range
Generator input for backup 240VAC
Wide PV input voltage range
Load sharing
Isolated emergency backup output for defined loads
Configurable charge and load times based on local utility recommendations
Loaded with safety features
Large 5-inch color LCD
RS485, CAN, Wi-Fi, 4G
Extremely efficient
FCC Part 15 Class B

Specification:

PV INPUT	PIHY9600 9600 WATT (9.6kW)
Max Input Power (kW)	15
Max PV Voltage (V)	660
MPPT Range (V)	80-550
Normal Voltage	360
Startup Voltage	100
Max Input Current (A)	15.5 x 3
Max Short Current (A)	26 x 3
BATTERY PORT
Max Charge/Discharge Power (kW)	11.5 \| 10.3
Max Charge/Discharge Current(A)	50
Battery Common Voltage (V)	230
Battery Voltage Range(V)	80- 495
Battery Type	Lithium \| Lead
AC GRID
Max Continuous Power(kVA)	9.6
Max Continuous Current(A)	40 \| 46.5
Nominal Grid Voltage (V)	211 to 264 @ 240 \| 183 to 229 @ 208 (not 3 phase, split phase)
Nominal Grid Frequency (Hz)	60
Output Power Factor	.99 adjustable
Current THD(%)	<3
AC BACK-UP & GENERATOR
Max Continuous Power(kVA)	9.6
Max Continuous Current(A)	41 \| 46.5
Max Peak Current (A)(10 min)	47.9 \| 49.5
Max Peak Power(kVA)(10 min)	11.5 \| 10.3
Nominal AC Voltage L-L(V)	240 \| 208 (not 3 phase)
Nominal AC Voltage L-N(V)	120 \| 120
Nominal AC Frequency(Hz)	60
Switching Time(ms)	<10
Voltage THD(%)	<3
EFFICIENCY
CED Efficiency(%)	97
Max Efficiency(%)	97.6
PV to Battery Efficiency(%)	98.1
Battery between AC Efficiency(%)	96.8
PROTECTION
PV Reverse Polarity Protection	YES
Battery Reverse Polarity Protection	YES
Over Current/Voltage Protection	YES
Anti-Islanding Protection	YES
AC Short Circuit Protection	YES
Residual Current Detection	YES
Ground Fault Monitoring	YES
Insulation Resister Detection	YES
PV Arc Detection	YES
Rapid Shut Down	YES
Enclosure Protect Level	IP65 \| NEMA4X
GENERAL DATA
Cooling	Thermal Fan
Relative Humidity	0-100%
Operating Temerature Range	-25 to 60C \| -77 to 140F
Operating Altitude	< 4000 m \| <13123 ft without derating
Noise Emission (dB)	<40
Stanby Consumption (W)	<10
Mounting	Wall Bracket
Communication with RSD	SUNSPEC
Display & Communication Interfaces	Full Color LED, RS485, CAN, Wi-Fi
Certification & Approvals	UL 1741 SA \| CSA 2202 No. 107-01 \|UL 1998 \| Rules21 \| HECO Rule 14 \| IP65 \| CEC
EMC	FCC Part 15 Class B
