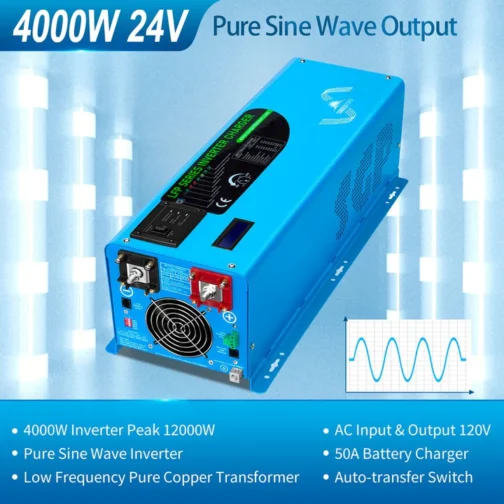

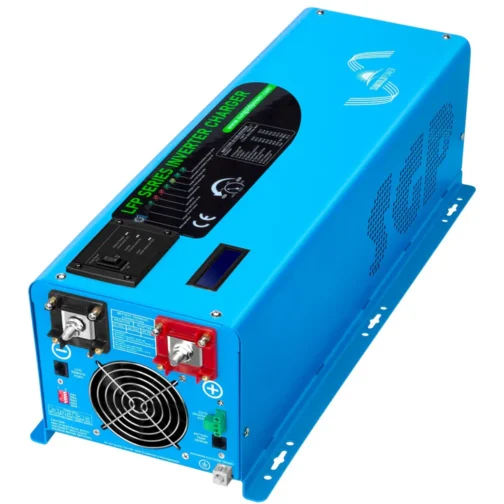

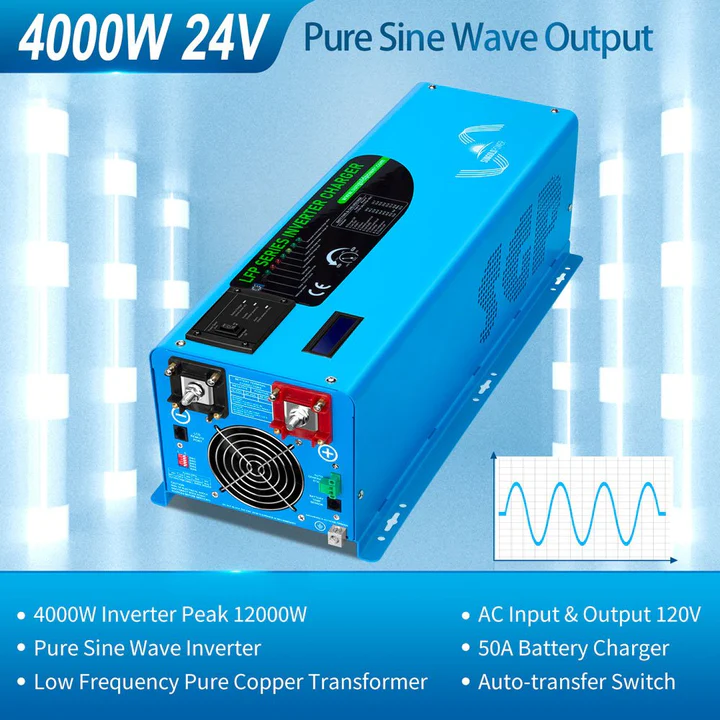

4000W DC 24V Pure Sine Wave Inverter With Charger

Description

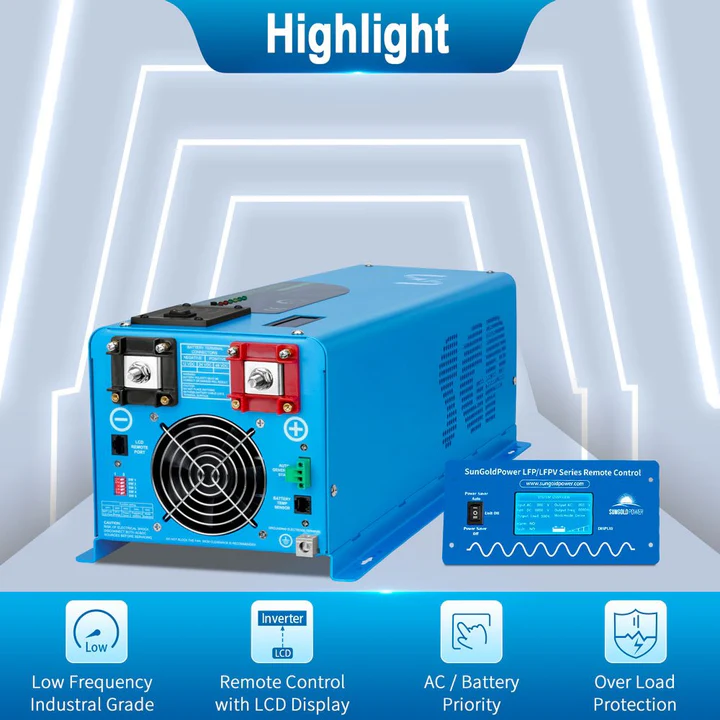

Main Features:
*4000W Low Frequency Pure Sine Inverter With Charger.
*AC/Battery Priority Selector.
*Automatic Generator Start.
*Safety and Convenient.
*The low frequency inverter can power all kinds of appliances.
*LCD Display, Remote Control, BTS including.
*Low Idle Consumption.

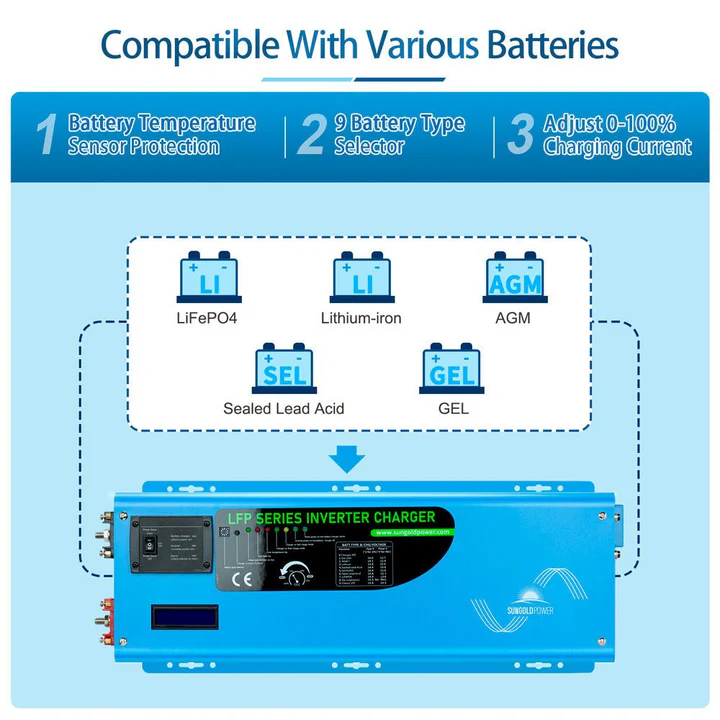

*9 battery type settings for charger.
*Multi Stage Smart charger 50+/-5A, charger can be disable.
*10msec typical transfer time.

Inverter Output:
*Continuous Output Power: 4000W
*Surge Rating: 12000W (20 Seconds)
*AC Output: 120VAC
*AC Input: 120VAC
*Output Wave: Pure Sine Wave (bypass mode)
*Typical Transfer Time: 10ms (MAX)
*Nominal Efficiency: >88%

DC Input:
*Nominal Input Voltage: 24.0Vdc
*Minimum Start Voltage: 20.0Vdc
*Low Battery Alarm: 21.0Vdc-22.0Vdc
*Low battery Trip: 20.0Vdc-21.0Vdc (select by SW1)
*High Voltage Alarm: 32.0Vdc
*Low battery Voltage Restart: 26Vdc
*Idle Consumption: 48W
*Power Saver Mode Idle Consumption: 19W

AC Charger :
*Charger Rate: 50+/-5A
*AC input Range (Grid or Generator): 90V-135VAC/100V-135VAC (select by SW2)
*Over Charge Protection Shutdown:31.4V
*Selectable Charge Setting based on battery type Adjustable charge current:off 0%-100%
*3-step intelligent battery charger

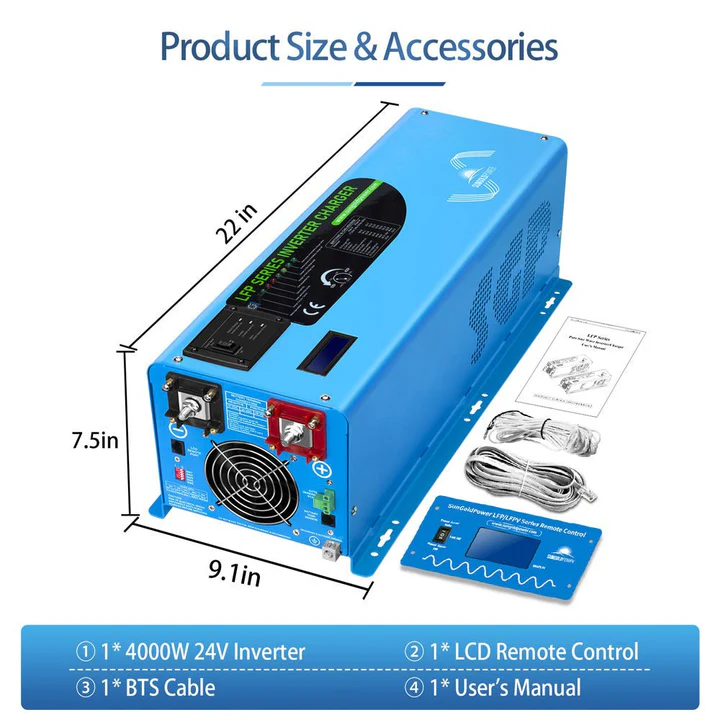

Packaging:
*4000W 24V Low Frequency Pure Sine Inverter
*English Manual
*Remote Control
*BTS Cable
*Unit Weight: 54 LB
*Unit Size: 22x 9.1x 7.5inch
*Shipping Weight: 62.8LB
*Shipping Size: 27×13.4x13inch
